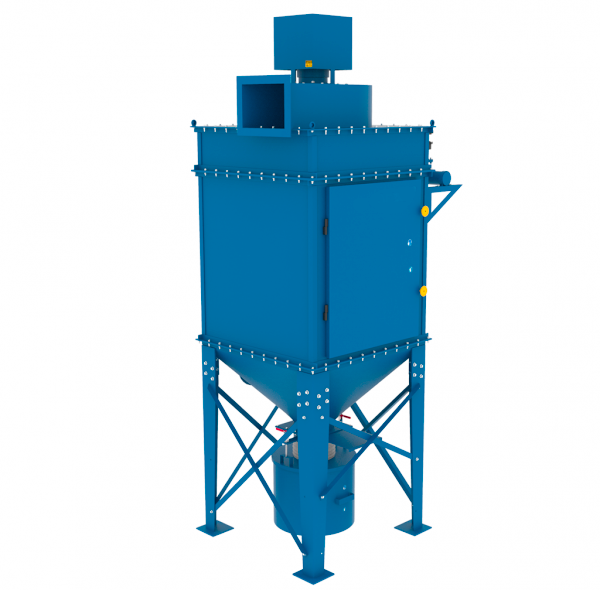

Pulse jet bag filter

Pulse jet bag filter is one type of Baghouse dust collectors using large array of filter bags for air filtering and high velocity pulsed air passed in reverse direction to airflow onto bags for cleaning. The other two types of baghouse dust collectors are shaker type bag filters and reverse air baghouse dust collectors (not so commonly used).

Send an inquiry

Description

Dust Collector bag house are three types. pulse jet is the most effective and economical type because of high air to cloth ratio, smaller size in comparison to other two of same capacity, continuous duty because of online cleaning advantages.

  • Filters are 99.5% efficient upto 0.5 microns.
  • High filtration area.
  • Easy handling of dust drum for dust disposal.
  • 12 gauge, powder-coated, steel  casing.
  • Automatic pulse cleaning increases filter life
  • Bulk materials handling,
  • conveying, screening, sieving, mixing, bin -silo venting
  • Building materials manufacturing,
  • Chemical, plastics and pharmaceutical powders
  • Processes with light or medium dust loading etc
Model No.AVPC30AVPC70
Nominal Air Flow Range (CFM)1050 – 25001200 – 3400
Filter Area (In Sq.m) Sq Ft4054
No Of Filters49
No Of Valves23
Floor Occupation Dimensions (mm) L W H1340   X   1050 X 32501630 X 1270     X 3835
  • Dust level sensor for collection drum.
  • Manual/Pneumatic Damper For Dust Drum
  • Flame Proof Motors & Control Panels
  • Filter Choke Sensor
  • Filter Burst Sensor
  • Fully Grounded For Flammable Dusts
  • Fire Sensor
  • Sprinkler Design For Flammable Dusts
  • Cyclone  Pre-Filtration System
  • Duct Routing & Installation
  • RAV
