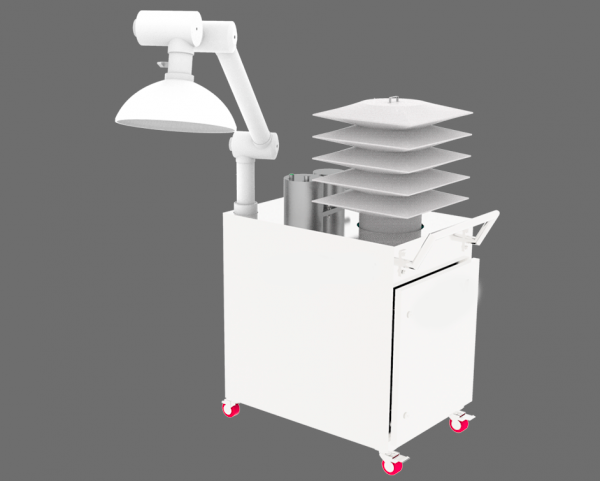

Pharmaceutical Dust Collector – For Cleanroom Applications

Pharmaceutical Dust Collector is designed to capture ultra fine dust particles generated during the manufacturing process in Pharmaceutical Industry. Pharmaceutical processes that require dust collectors include tablet coating and tablet presses, fluid-bed drying, spray drying, blending,  granulation, and general room ventilation. The air drawn in by the Dust Extractor is filtered before it returns to workspace.

Description

The pharmaceutical, nutraceutical and cosmetics industry generates a variety of products that can become a nuisance dust during production and packaging. Pharmaceutical dusts may also have identified adverse health impacts, and special mitigation strategies may be required to limit occupational exposure below levels OSHA.

Unique Features


  • Corrosion Resistant construction (55316) for handling Clean Room Applications
  • Industrial-quality construction effectively handles collection of wood chips and sawdust
  • Quick-install collection bag makes emptying and re-attaching a snap
  • Single-stage design for economical and quiet operation
  • Includes four casters for maneuverability and total portability
  • High air velocity (CFM) design stands up to any competitive specifications
  • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
  • Pharmaceutical Industry
  • Floor gate, Grinders
  • Bins & Bucket elevators
  • Shake out conveyor
  • Belt Conveyors
  • Bag tube Packers
  • Sandblasting, Grit & shot blasting
  • Wood industries
  • Dust Collection for Grinding & Buffing Machine
  • Mixers, foundry
  • For Portable or Stationary Applications
BASIC DETAILSSD310SD320
Suction Capacity (CMH/CFM)680/4001360/800
Overall Dimensions (L X WX H )940 X 580 X 1685 mm1110 X 615 X 1530 mm
Machine Weight (Approx.)130 Kg170 Kg
Wood Packing Size (L X W X H)1100 X 720 X 1880 mm1250 X 780 X 2100 mm
Shipping Weight (Approx.)230 Kg270 Kg
Motor Power1HP2HP
Motor Speed2880 RPM2880 RPM
Power Supply3 PHASE/ 50Hz3 PHASE/ 50Hz
Rated Current1.6 A3.2 A
Noise Level<82dB<82dB
Static Pressure100mm OF WG100mm OFWG
Impeller Size250mm DIA250mm DIA
Inlet Size100mm100mm
Filter Specifications
Filter Surface33.7 Sq. F33.7 Sq. Ft
Type Of FilterFilter BagFilter Bag
Filter MaterialPolyesterPolyester
Filter Efficiency99% EFFICIENCY @ 5MICRONS99% EFFICIENCY @ 5MICRONS
Cartridge FilterOptionalOptional
  • Adjustable extraction arm (P/N : AEA-001)
  • Flexible Fabric hose ( P/N : AFH – 002 )
  • Table Mount Clamp (P/N : ATC – 003)
  • Custom Hoods
  • Two stage Filtration Filter choking alarm
