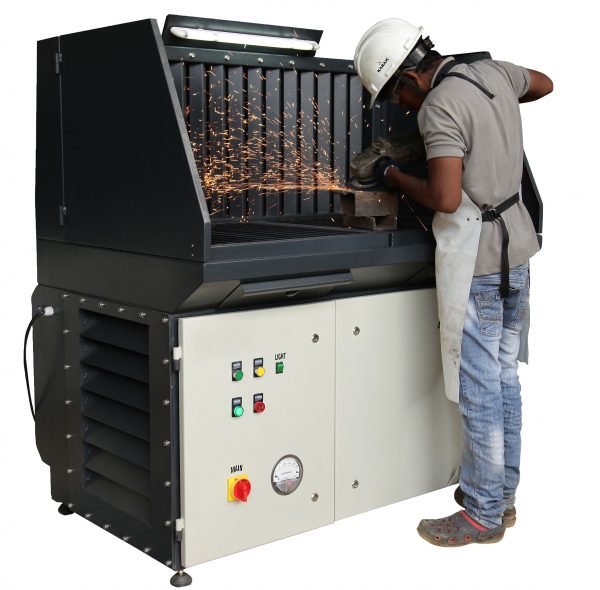

downdraft and backdraft workbench

Downdraft and backdraft workbench dust fume collectors are designed as a safe and ergonomic workstation for capturing fumes and dust particles during grinding, Plasma cutting, welding, and other mild power handling applications protecting workers from inhaling it.

Description

Downdraft and backdraft workbench is used to capture dust and fume particles during grinding, Plasma cutting, welding and other medium to heavy duty applications. Downdraft table can be used to capture the welding fumes effectively with the help of downdraft and backdraft fume extraction. Downdraft grinding table removes fumes and dust generated during the grinding process through the working surface and backdraft panel. Downdraft fume extractor is suitable for many applications like grinding, welding and plasma cutting process. Downdraft welding table has three way spark arrester system, captures the sparks before it get into the filter chamber.

  • Three way spark arrester
  • Low noise level operations
  • Fully automatic PLC based filter cleaning system.
  • Powerful extraction with integrated fan.
  • Easy to operate.
  • Large filter surface and long filter lifespan.
  • Sturdy construction
  • Reliable, low maintenance operation.
  • Welding
  • Grinding
  • Power handling
  • Plasma cutting
  • Mild coating and spraying
  • Fettling
BASIC DETAILSDT1500
SUCTION CAPACITY (CMH/CFM)2550/1500
OVERALL DIMENSIONS (L X W X H)1390 X 1000 X 1610 mm
WORKBENCH HEIGHT900mm
MACHINE WEIGHT (APPROX.)350kg
WOOD PACKING SIZE (L X W X H)1600 X 1210 X 1860 mm
SHIPPING WEIGHT (APPROX.)500kg
MOTOR POWER2HP
MOTOR SPEED1440 RPM
POWER SUPPLY3 PHASE / 50Hz
RATED CURRENT4.49 A
NOISE LEVEL80dB
STATIC PRESSURE100mm OF WG
IMPELLER SIZE490mm DIA
FILTERS
PRE-FILTER (BOX TYPE)90% EFFICIENCY @ 10MICROMETER
NON WOVEN SYNTHETIC FILTRATION MEDIA
CARTRIDGE FILTER (DIN TYPE)9 sq.m
SPUN BONDED POLYESTER 260GSM
FILTER EFFICIENCY98% @ 2 MICRONS
HEPA FILTER (OPTIONAL)99.97% @ 0.3 MICRONS
COMPRESSED AIR TANK9 LITRES
COMPRESSED AIR PRESSURE5-6 bar
